The new SUMO II ATEX and Mini-SUMO II ATEX electric pumps
The new models in the “SUMO series” pump line made specifically for applications in explosive classified environments (ATEX), Zone 1 and 21, Zone 2 and 22. Pumps are equipped with a protective casing that makes them resistant and suitable for a variety of systems operating with either Oil or Grease in very demanding conditions.
Pumps have a high level of resistance, power, and flexibility due to the multiple configurations and characteristics of the pumps in the “SUMO line”.

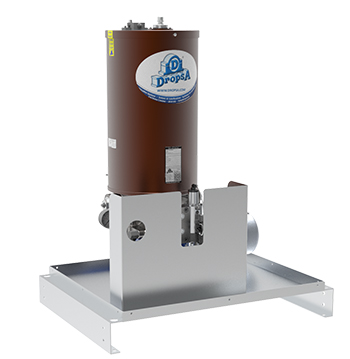

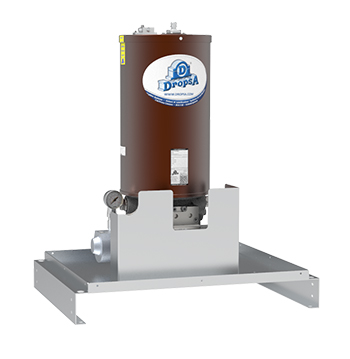

SUMO II ATEX  | Mini-SUMO II ATEX |
Higher degree of motor protection for maximum for maximum resistance and protection against dust and gas Key features:
- Protective casing for explosive environments
- Quick swap pump modules means zero downtown and disruption to pipe - work during pump maintenance.
- High output and pressure make large extended systems possible
- Flow rate (2 pumping elements): 380 cc/min
- Degree of motor protection: IP65
- Maximum operating pressure: 400 Bar (5800 psi)
- Electrical dual line inverter integrates directly onto outlet
- Minimum level capacitive switch and visual maximum level as standard
- Lubricants: Oil Min. 32 cSt; Grease Max. NLGI2 | Utilizes a higher flow rate and can incorporate up to three different size reservoirs to provide an optimal solution Key features:
- Protective casing for explosion-risk environment
- Compatible with: 02 System - System 26
- Tank: 10 KG, 30 KG, 100 KG
- Quick swap pump modules means zero downtown and disruption to pipe-work during pump maintenance.
- Flow rate: 110 cc/min (with 2 pumping elements)
- Degree of motor protection: IP45
- Maximum operating pressure: 380 bar
- Operating temperature: from -20°C to +40°C
- Minimum level capacitive switch and visual maximum level as standard
- Lubricants: Lubricating Oil Min. 32 cSt; Grease Max. NLGI2 |
